Vaults

Details

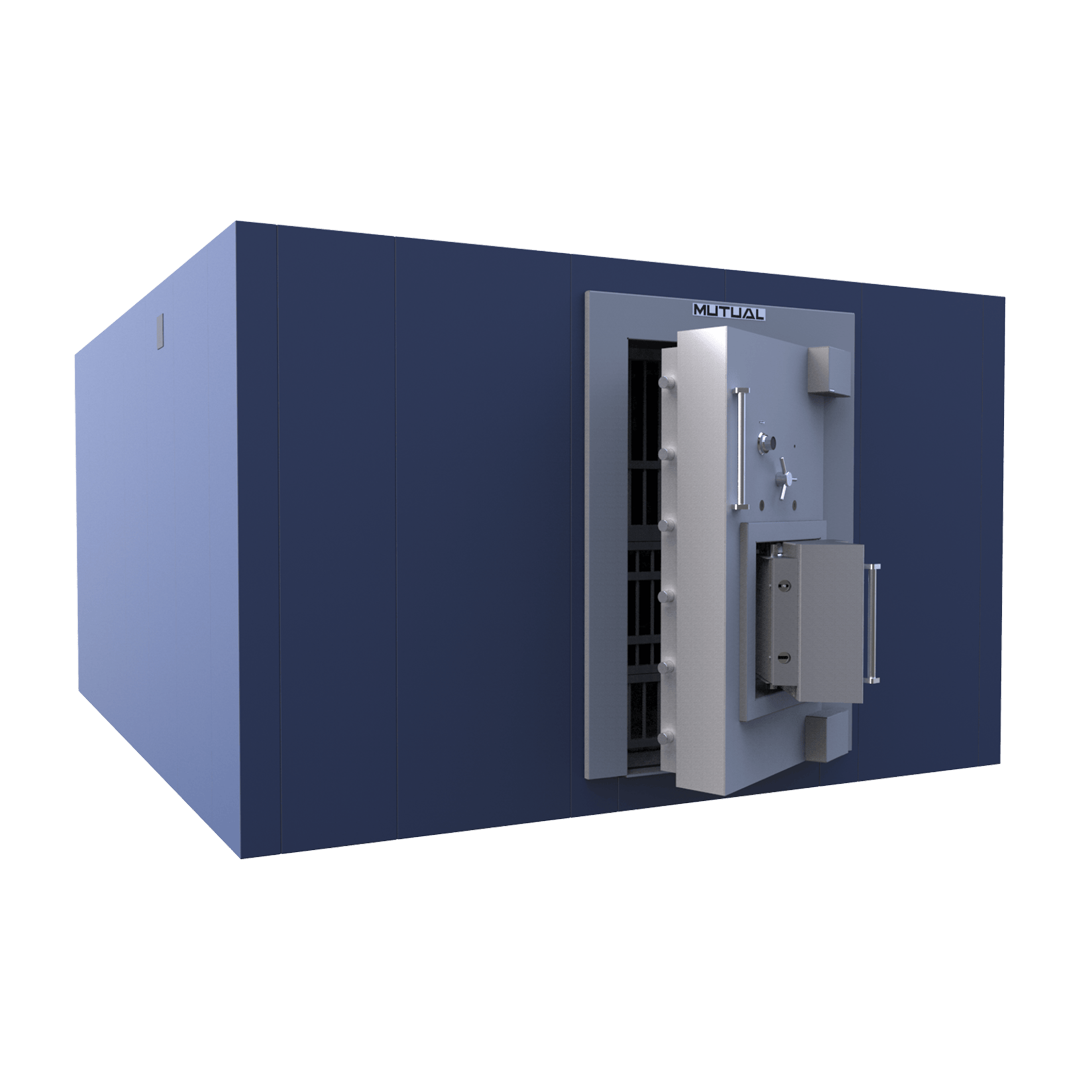

MUTUAL has followed the UL of America’s vault specifications for the classes 1, 2, & 3. The vault consists of a number of panels which butt up together. These are securely space welded from the inside & further secured by steel stripping the full height of each panel. This applies to the walls, floor & ceiling.

MUTUAL’s demountable vaults are fully SABS tested & approved for SABS Cat 2ADM, Cat 3, Cat 4 & the highest level of Cat 5.
The overall height of the vault is 2.4 meters. The length and width dependent on the customers requirements. The vault dimensions are not restricted to any standard sizes. All units are completely pre-assembled in our factory, prior to installation, to ensure a proper fit.

Features

Frame: Heavy duty with complete vestibule. Bearing supported hinges – top and bottom
Boltwork: 40mm diameter round bar locking bolts
Locking: 4-Wheel combination lock plus 2 x 8-lever keylocks
Finish: Zinc chromate undercoat for final matching paintwork by contractor on site
Weight:
- DS100 – 900kg
- DS200 – 1350kg
- DS250 – 1500kg
- DS100 emergency door – 300kg

Specification

DS100

Wall Opening: 2000mm x 1000mm
Clear Opening (door opening 180°): 1895mm x 855mm
Centre line of door opening to edge of frame: 660mm
Clear Opening (door opening 90°): 1885mm x 655mm
Over Door Frame: 2130mm x 1320mm
Overall width of door and frame (door open 180°): 2245mm
Projection of door (open 90°): 1050mm
Projection of door (open 180°): 210mm
Recommended wall thickness: 300mm – 600mm

DS200

Wall Opening: 2000mm x 965mm
Clear Opening (door opening 180°): 1865mm x 900mm
Centre line of door opening to edge of frame: 660mm
Clear Opening (door opening 90°): 1885mm x 505mm
Over Door Frame: 2125mm x 1315mm
Overall width of door and frame (door open 180°): 2250mm
Projection of door (open 90°): 1050mm
Projection of door (open 180°): 310mm
Recommended wall thickness: 300mm – 600mm

DS250

Wall Opening: 2000mm x 1100mm
Clear Opening (door opening 180°): 1885mm x 910mm
Centre line of door opening to edge of frame: 705mm
Clear Opening (door opening 90°): 1885mm x 545mm
Over Door Frame: 2115mm x 1410mm
Overall width of door and frame (door open 180°): 2320mm
Projection of door (open 90°): 1120mm
Projection of door (open 180°): 365mm
Recommended wall thickness: 300mm – 600mm
