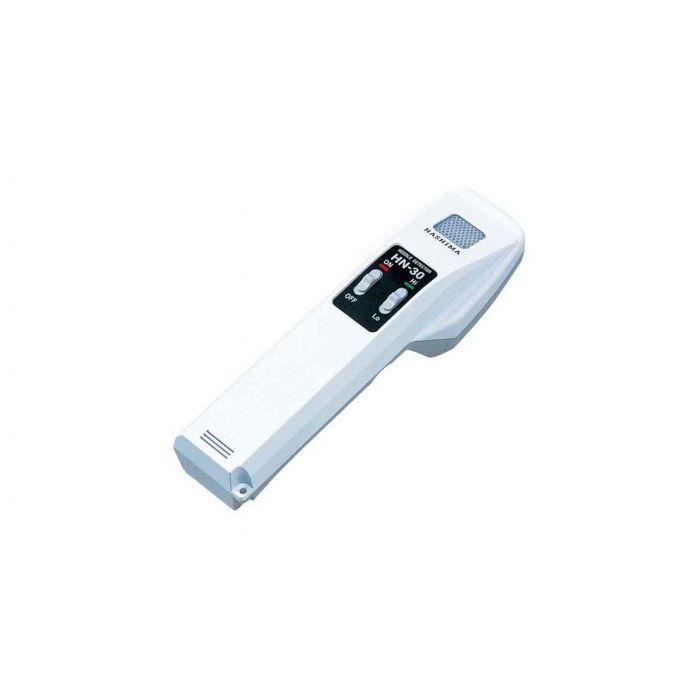

HASHIMA NEEDLE DETECTOR HN 30 JAPAN

Details

The Hashima HN30 is a portable hand needle detector designed for the garment and textile industry. It efficiently detects broken needles and ferrous metal contaminants with high precision. This device can detect a 1.0mm ferrous sample card and a 0.8mm steel needle at 5mm height from the surface. Equipped with an adjustable sensitivity feature, it ensures accurate detection and is ideal for quality control in textile manufacturing.

Features

  • High Detection Sensitivity: Detects 0.8mm steel at 5mm height (High mode) and 1.0mm steel at 5mm height (Low mode).
  • Detection Adjustment: Two-step sensitivity settings (High/Low).
  • Portable & Lightweight: Weighs only 190g, 10% lighter than previous models, reducing hand fatigue.
  • Battery Saving Function: Automatically switches to power-saving mode when idle and activates upon hand movement.
  • Large LED Indicator & Buzzer Alarm: Provides clear detection results with a large LED lamp and buzzer alarm.
  • Ergonomic Design: Easy to grip and operate for extended use.

Specification

  • Detection Method: Magnetic Induction
  • Detection Area: 25mm (W) × 50mm (D)
  • Power Supply: 2 × 1.5V AAA Dry Cell Batteries
  • Alarm System: LED Lamp & Buzzer
  • Dimensions: 58mm (W) × 195mm (L) × 50mm (H)
  • Weight: 212g
